SUSPENDED PLATFORM SYSTEMS

Our cradle platforms are CE-approved and ISO Certified
The cradle equipment is versatile and ideal for projects where traditional scaffolding is not practical or cost effective. The cradles can also be installed at any desired height.
Their unique design allows us to build any configuration necessary to fit any structure and allow close access to the work surface.
The platforms are suspended from steel wire ropes and connected to counterbalance rigs allowing them to hang freely.
The unique design of our cradle systems allows high load capacities despite the low self weight.
Platforms are therefore easily transported, installed, shifted and stored.
Our suspended platforms are powered either by Alpha 500/800 winches or Compact 400/500CX winches depending on the load requirement.
Platforms are connected to a Sky-Lock secondary wire safety device.
Cradle sizes can range from 1 meter up to 12 meters in length with a safe working load of 200kg-500kg.
We also specialise in lifting rigs and work cages, corner units and double deck cradles.
Rental periods available from a day to as long as required.

View Equipment
Work Cage

Work cage

A work cage can be used in a limited area or confined spaces
for any construction, repair or inspection purposes.


Access Specifications

Height 2315mm
Length 1000mm
Width 1370mm
Safe working load of work cage is 1 person or 250kg.

Walk Cradle

Cradle with Walk thru units

A quick and cost effective method
for accessing any high rise structures
without any height restrictions.


Access Specifications

Cradle sizes range from 2-12 metres in length from walk thru to walk thru and extentions can be added where neccesary.
Safe working load of cradle between 200kg-500kg.

Standard Cradle

Standard Cradle

A quick and cost effective method
of accessing any high rise structure
without any height restrictions.


Access Specifications

Cradle sizes range from 2-12 metres in length.
Safe working load of cradle between 200kg-500kg.


Alpha

Alpha Hoist

Alpha 500 / 800
Load Rating 500kg / 800kg

Compact

Compact Hoist

Compact 400 / CX500
Load Rating 400kg / 500kg

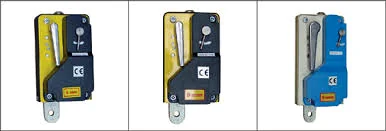

Sky Locks

Sky Lock

Sky Lock is an overspeed safety device and acts on the secondary safety rope. It acts as a secondary safety brake in emergency situations.

SUSPENDED CRADLE SOLUTIONS LTD


OUR SERVICES

We provide all the necessary services needed to install cradles on time and within budget

  • FREE SITE SURVEY AND QUOTATION

    WE PROVIDE METHOD STATEMENTS AND RISK ASSESSMENT FOR EVERY CONTRACT

  • INSTALLATIONS

    ALL INSTALLATIONS ARE COMPLETED BY A FOREMAN OR SUPERVISOR COMPETENT IN BOTH RIGGING SKILLS AND SAFETY AWARENESS. RISKS ARE ASSESSED FOR ALL INSTALLATIONS.
    ALL OUR CRADLES ARE INSTALLED WITH A SECONDARY WIRE SAFETY DEVICE

  • BSEN 5974 STANDARDS & TECHNICAL DATA

    ALL OUR INSTALLATIONS COMPLY WITH BSEN 5974 STANDARDS.
    TECHNICAL DATA FOR OUR EQUIPMENT, INCLUDING ALL TEST CERTIFICATION FOR WINCHES, WIRES, SKY-LOCKS AND RIG CALCULATIONS/DRAWINGS ARE AVAILABLE

  • TRAINING SCHEME

    WE PROVIDE A ONE ON ONE TRAINING SCHEME FOR THE CORRECT AND SAFE USE, OPERATION AND INSPECTION OF OUR CRADLE INSTALLATIONS BEFORE HANDOVER
